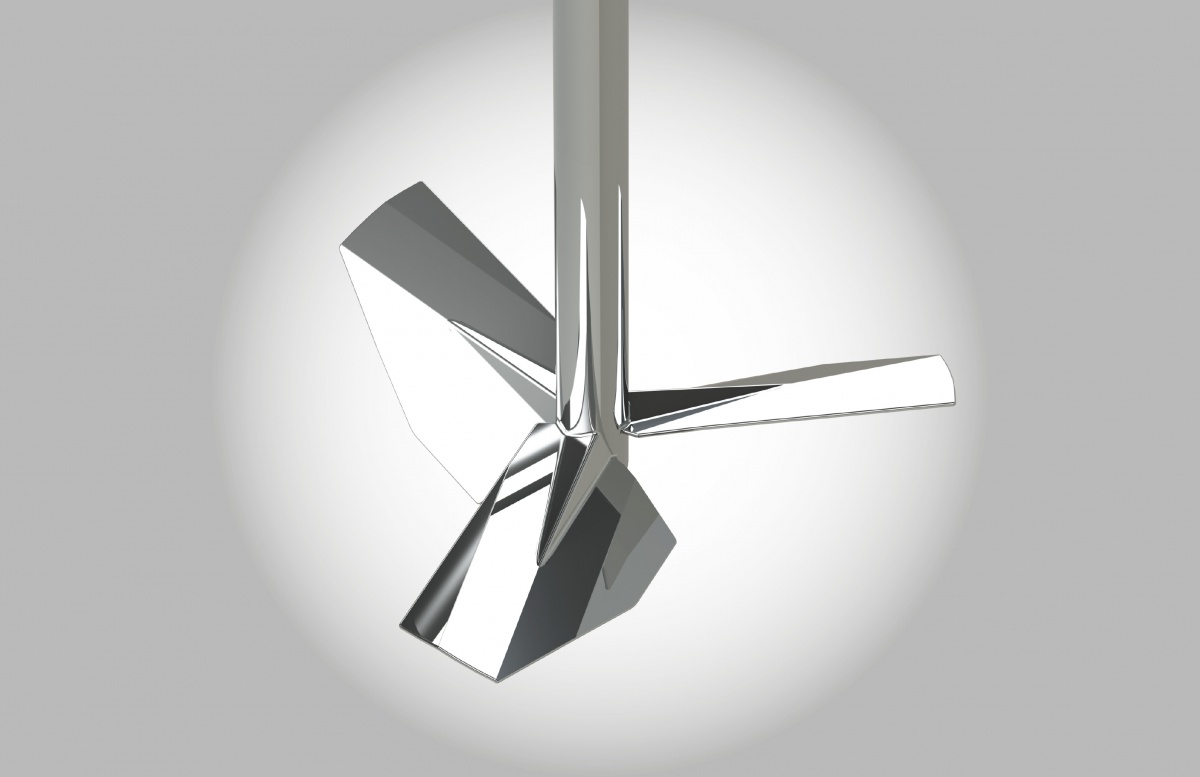

AX2: profiled propeller with slim blades
This propeller is similar to the AX1 but, since its speed is higher, it is more suitable for dissolution thanks to its higher shear rate. Its hydraulic characteristics are very close to those of the AX4.
DESIGN OF THE AX2 PROPELLERDefinition basis: Profiled propeller with slim blades
Number of blades: 3
Rotation direction: clockwise or anticlockwise (according to the required flow)
FLOW OF AX2 STIRRING DEVICES - USE
Vertical from top to bottom (axial preponderance)
A stirrer equipped with a blown AX2 can be mounted centred with counter-blades or offset without counter-blades.
Shear effect at max. speed (peripheral speed)
Risk of the introduction of gas into the mixture
Mixtures, dissolutions, holding in suspension
Vertical from bottom to top (axial preponderance)
Bubbling on a liquid surface
A stirrer equipped with a suction AX2 can be mounted centred with counter-blades or offset without counter-blades.
Mixtures, foaming product mixtures, dissolution, holding in suspension.
