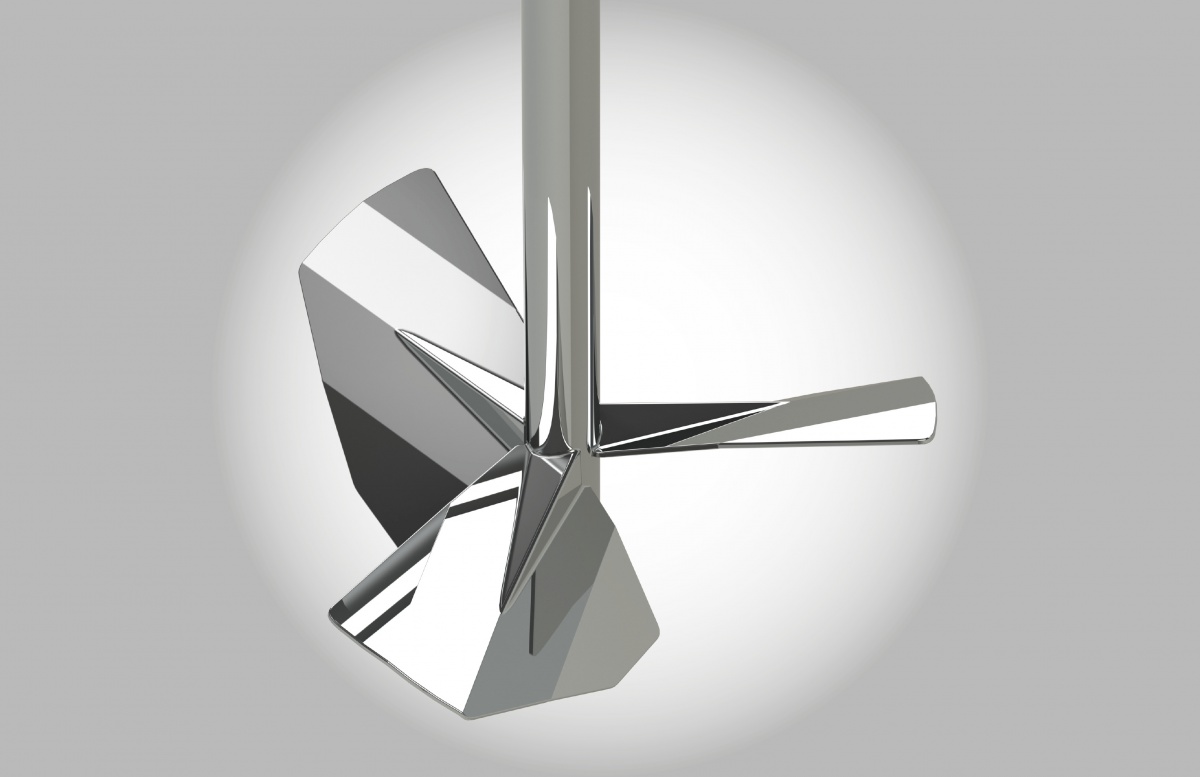

AX1: profiled propeller with slim blades
AX1The AX1 is made for homogenisation, suspension creation at low speed as well as heat transfer. It is the propeller with the largest manometric head, offering a low shear rate.
PROPELLER DESIGNDefinition basis: Profiled propeller with slim blades
Number of blades: 3
Rotation direction: Clockwise or anticlockwise (according to the required flow)
FLOW OF AX1 STIRRING DEVICES - USEBlown flow:
Vertical from top to bottom (axial preponderance)
A stirrer equipped with a blown AX1 can be mounted centred with counter-blades or offset without counter-blades.
Low shear rate at max. speed (low peripheral speed)
Risk of the introduction of gas into the mixture
Mixtures, heat transfer, simple dissolution, creation of suspension and holding in suspension.
Vertical from bottom to top (axial preponderance)
Bubbling on a liquid surface
A stirrer equipped with a suction AX1 can be mounted centred with counter-blades or offset without counter-blades.
Mixtures, foaming product mixtures, heat transfer, simple dissolution, creation of suspension and holding in suspension.
