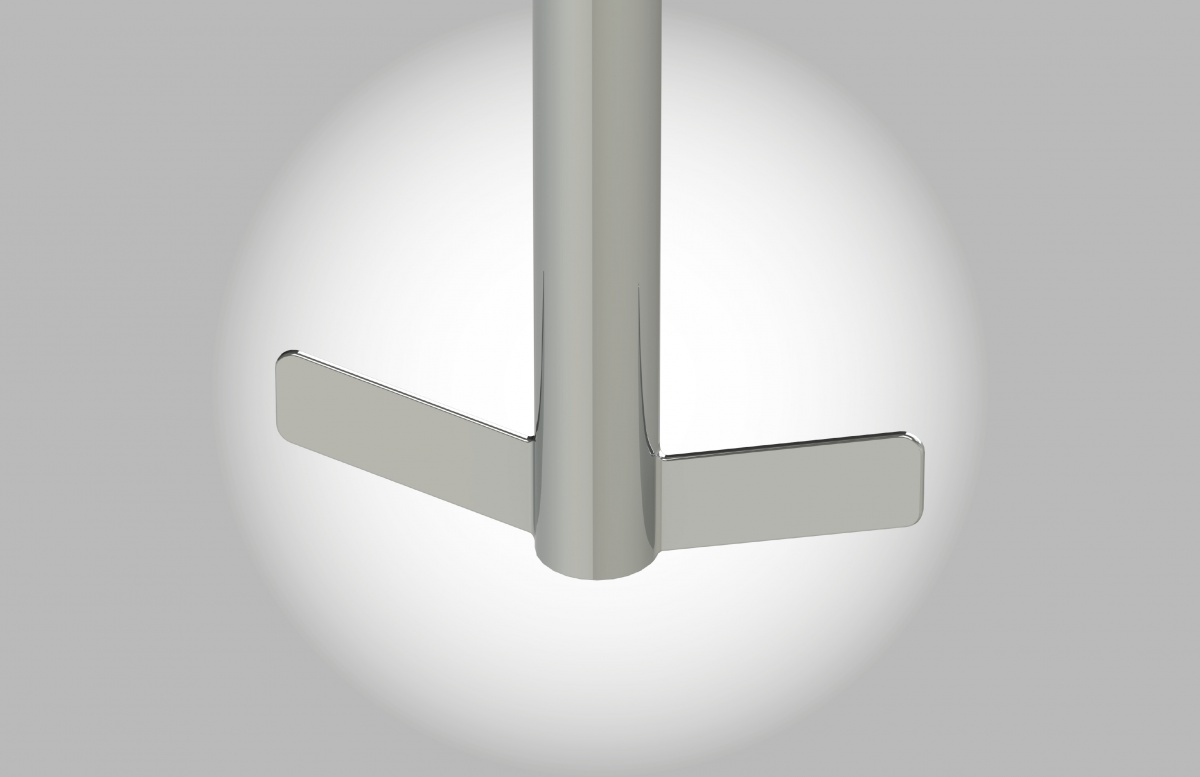

TF2, TF3 flat turbine with straight blades
TF2, TF3The TF turbine is systematically installed near the bottom of a vessel.
This turbine enables a mixing effect to be maintained until the container is fully empty or during the filling operation.
It is necessarily combined with a pumping stirring device.
Design of the tf turbineDefinition basis: Flat turbine with straight blades
Number of blades: 2 or 3
Rotation direction: Clockwise or anticlockwise
Flow of straight blade stirring devices - USEHorizontal, radial, centrifugal flow.
Vortex creation by depression.
A stirrer equipped with a curved blade turbine can be mounted centred with counter-blades or offset without counter-blades.
Medium shear effect at max. speed (medium peripheral speed)
Holding in suspension, mixing dynamic during emptying or filling of the container.
